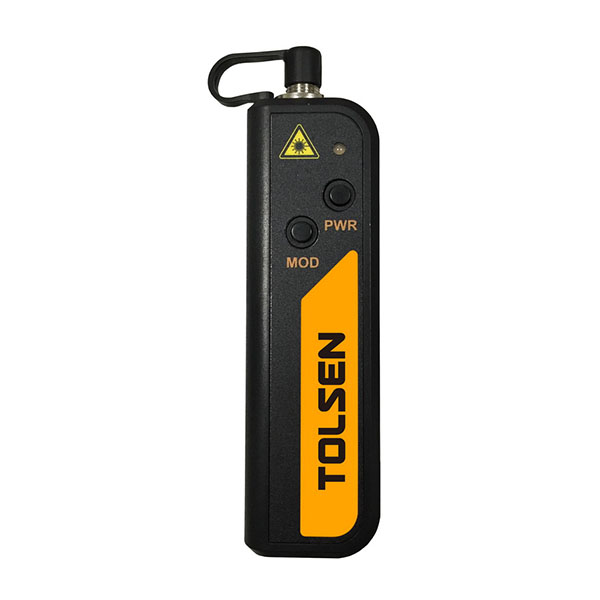

MINI VISUAL FAULT LOCATOR (VFL)
Constant & stable output power.
Special laser driver circuit design, to make sure the laser output
power remains a constant power level as long as in an available battery voltage.
Low battery warning, reminds users to change the battery timely.
Long battery life(up to 40 hours with MA batteries)
Operates either in CW or Pulsed
Pocket size and light weight, easy to use.
|Output power||1mw or 10mw|
|Optical connector||FC/2.5mm universal connector
For 1.25mm connectors, FC (Male)-LC (Female)
convertor can be optional on customer requests
|Operating Model||Both CW and Pulse(2Hz) available|
|Power Supply||Two AAA alkaline batteries|
|Battery Operating Time||40hours
Test with Panasonic LR6 AAA ALKALINE battery
|Operating||-10— +45 (°C )|
|Storage Temperature||-25″+70 (°C )|
